Professional Digital Cable Tension Meter, 3 Working Modes & 6 Units | USB Data Transmission & Storage, Portable Tension Gauge for Wire, Filament, Fiber Testing(2500CN)

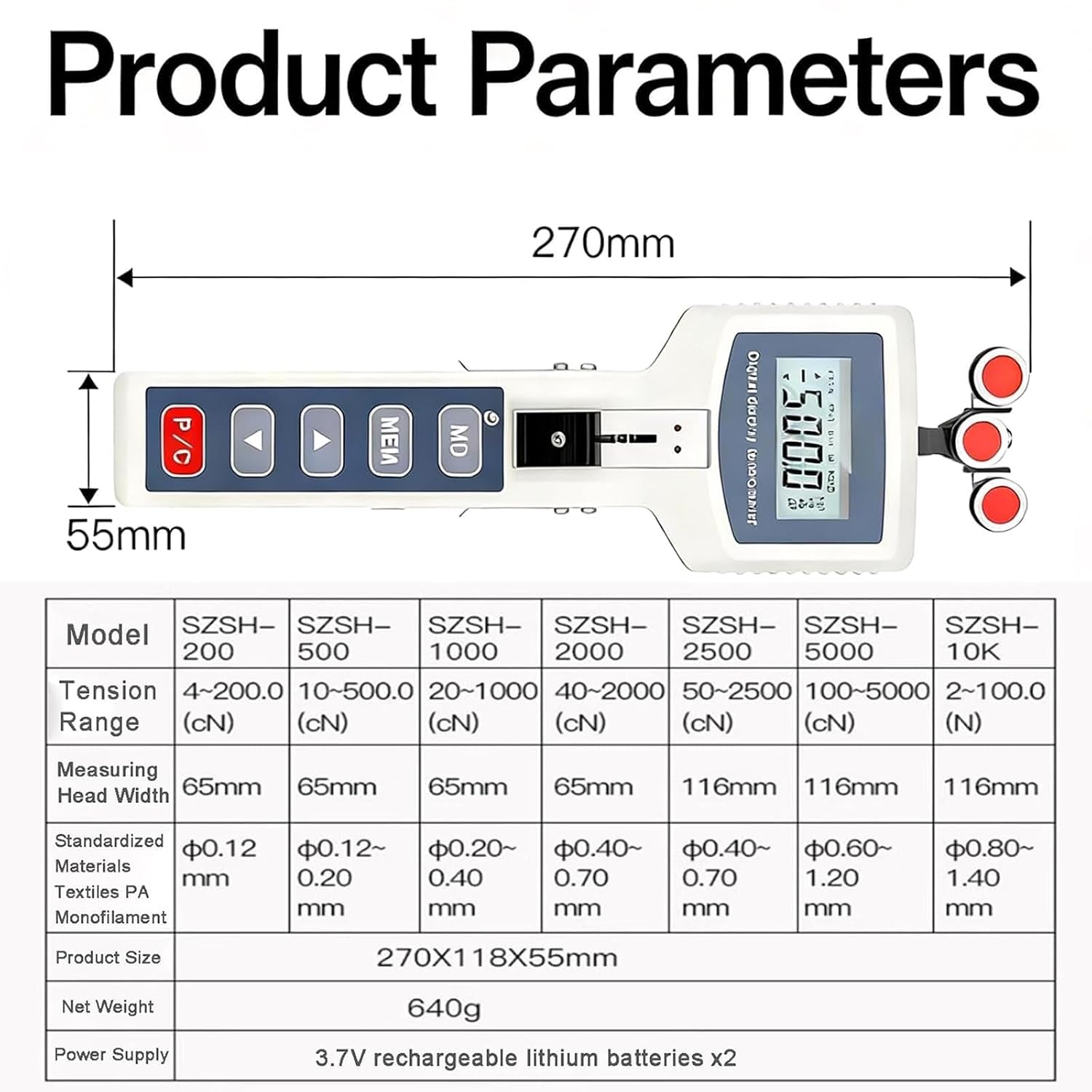

Available Models (Tension Ranges)200 cN, 500 cN, 1000 cN, 2000 cN, 2500 cN, 5000 cN, 10000 cN – choose the range that matches your application.SpecificationsMeasuring Head Width: 65 mm (for 200–2000 cN models) / 116 mm (for 2500–10000 cN models)Calibration Material: Textile PA monofilament (φ0.12 mm, 0.12‑0.2 mm, 0.2‑0.4 mm, 0.4‑0.7 mm, 0.6‑1.2 mm, 0.8‑1.4 mm)Product Dimensions: 270 × 118 × 55 mmNet Weight: 640 gGross Weight: 2.1 kgInternational Tension Units Reference1 cN = 1.02 gf = 0.01 N100 N = 10.2 kgf = 10,000 cNWhat’s in the Box1 × Digital Tension Meter (model of your choice)1 × USB Data Cable1 × Charger1 × Instruction ManualNote:1.Please allow 1-2cm errors due to manual measurement, note that you do not mind before order.2.Due to the differences between different monitors, the picture may not reflect the actual color

• PRECISE TENSION MEASUREMENT MATERIAL CALIBRATIONS: This handheld digital cable tension meter delivers accurate, reliable readings for threads, wires, fibers, and cables across a wide range of industrial applications. Featuring built-in material calibrations, it functions as a professional-grade wire tensile strength tester, ensuring consistent results whether you're testing nylon, steel wire, copper, or synthetic fibers.
• 3 VERSATILE WORKING MODES FOR FLEXIBLE TESTING: Equipped with real-time, hold, and peak operating modes, this gauge adapts effortlessly to diverse testing scenarios. The additional thickness adjustment function further enhances versatility, making it ideal for dynamic tension monitoring, static holding measurements, and capturing maximum peak values—giving you complete control over every test.
• 6 SELECTABLE UNITS WITH HIGH ACCURACY: Switch seamlessly between 6 measurement units (cN, gf, oz, Kgf, N, and lb) to match your industry standards and reporting requirements. With a precision accuracy of 2.5% full-scale, this cable tension gauge delivers trustworthy, professional-grade data you can rely on for quality control, compliance, and production documentation.
• USB DATA TRANSFER & SET STORAGE CAPACITY: Built-in memory stores up complete data sets, while USB communication enables easy data export and seamless transfer to your computer or mobile device. This simplifies record-keeping, systematic analysis, and reporting—boosting overall work efficiency and traceability in professional environments.
• WIDE INDUSTRIAL APPLICATION COVERAGE: Suitable for a broad spectrum of materials including wire and cable, textiles, chemical fibers, optical fibers, and more. It supports full-process tension testing—from raw material inspection and production line quality control to finished product assessment—helping manufacturers maintain consistent product quality, reduce defects, and optimize production processes.
